트리오 기둥 거푸집 시스템 (TRIO Column Formwork)
Overview

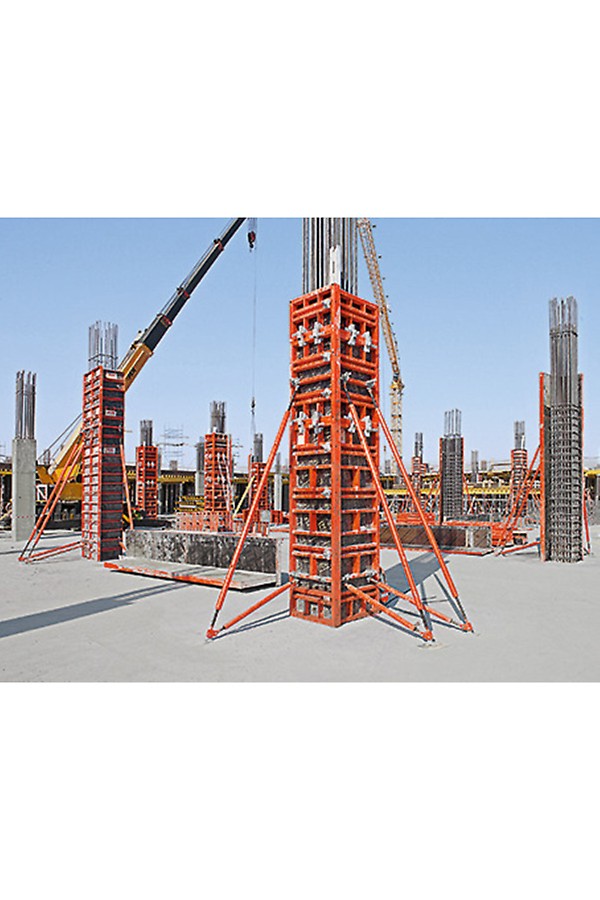

With the 90 cm wide TRIO column panels, square and rectangular-shaped columns can be realized. With tie holes in the frames, the panels can also be used in TRIO wall formwork operations. As a result, it is a sensible and logical supplement to the wall formwork system.
Easy and simple connection
of extended panels at the joints with the proven BFD coupler

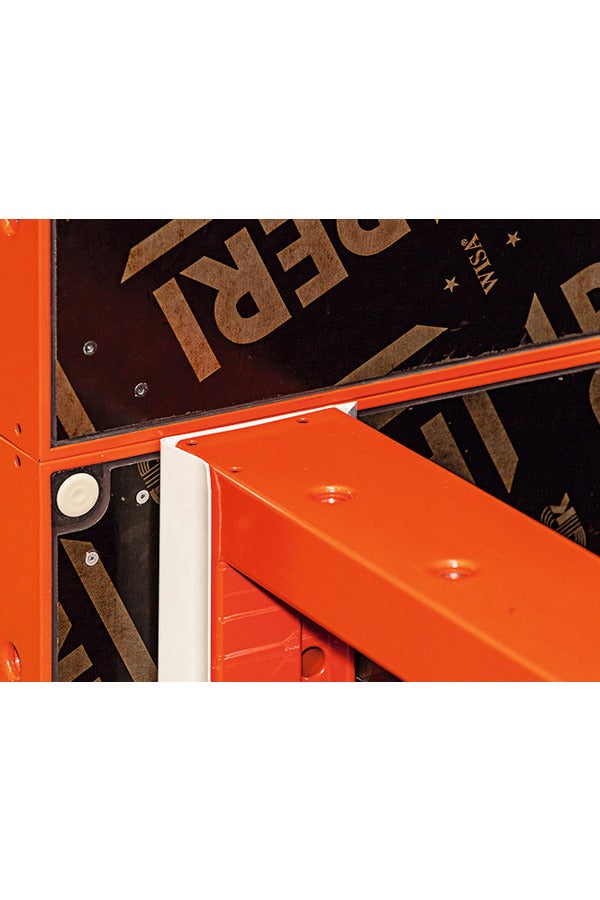

No nailing of chamfer strips
due to the clamping mechanism and PERI chamfer strip
High number of re-uses
through the robust design of the panels
Technical Details
- For square or rectangular cross-sections from 20 cm x 20 cm up to 75 cm x 75 cm in 5 cm increments
- Height adjustments up to maximum 8.10 m in 30 cm increments with 3 different panel heights (0.60 m / 1.20 m / 2.70 m)
- Panel connections when extending the frames with the BFD coupler
- Maximum permissible fresh concrete pressure 100 kN/m²
- With working and concreting platforms as well as access ladders
